Evaluation Protocol

Controller Learning benchmark 0.1 compares trusted Controller plugins under one physical four-wheel car, one Level 1 Challenge, and one versioned set of Tracks. Reward is useful for training diagnostics, but it is never the ranking score.

For routine work on a new Controller, use the informal Level 0/Validation command documented in the Controller workflow. It writes clearly labeled local CSV/JSON evidence and can capture a trajectory from the measured rollout. It has no Test option and cannot replace the accepted result described below.

The formal M8 Test result is published. Attempt 001 loaded the fixed Test pool, then stopped in Environment creation before reset, stepping, Controller construction, or any performance observation. The sole authorized replacement, attempt 002, completed the unchanged protocol and passed all transaction and artifact-integrity gates.

Benchmark 0.1 split contract

Benchmark 0.1 contains 10,000 Train Tracks, 100 Validation Tracks, and 20 Test Tracks generated from the same Level 1 distribution. The splits use disjoint seed namespaces and geometry hashes. Their roles are deliberately different:

Split	Role	Controller decisions allowed
Train	Optimization, reward design, and learning diagnostics	Training and iteration
Validation	Hyperparameter and checkpoint selection	Selection before Test
Test	One final comparison	Reporting only

The Test geometry is public and packaged for reproducibility. Public availability does not make it tuning data: a Controller, checkpoint, feature definition, or configuration changed after seeing Test performance is not the benchmark 0.1 submission described here.

PID and MPC were frozen after their M6 Validation evidence. PPO was trained on Train, selected on Validation, and exported as the frozen inference-only plugin documented in the PPO tutorial. The M8 comparison is an evaluation of those artifacts, not another optimization phase.

Fixed formal execution

The complete protocol is stored in configs/final_evaluation.toml. Its execution order is fixed:

1. PID on Test manifest rows 0 through 19.
2. MPC on Test manifest rows 0 through 19.
3. PPO on Test manifest rows 0 through 19.

One shared CarRacingEnv with backend="mjx_warp" and batch size one serves all 60 episodes. This keeps the ordinary Controller plugin boundary identical for every algorithm. Native GPU batching is used for PPO training and environment benchmarks; the final plugin comparison is intentionally sequential and host-synchronized.

For Test row i:

• the Environment is reset with root seed i and fixed track_index=i;
• every Controller therefore receives the same Track and reset seed;
• episode and Controller seeds are independently derived with NumPy SeedSequence, world index zero, episode counter zero, and separate randomness domains; and
• the Runner imports the frozen plugin and creates a fresh Controller instance.

Because the derivation inputs are identical for a corresponding row, PID, MPC, and PPO receive the same Controller seed on that row. The Controller seed remains distinct from the episode seed.

The row order, root seeds 0..19, Controller order, Controller directories, full plugin file identities, source revision, Pixi lock, input reports, and protocol configuration are bound before Test is opened. A plugin cannot retain state between episodes or change Challenge settings.

Attempt 002 initializes Warp before the one-way Test binding. This eagerly performs the runtime's platform probe while ordinary pre-Test process creation is still available; after binding, the only permitted child process is the hash-bound nvidia-smi memory query. The change does not alter the Environment, vehicle, Tracks, Controller boundary, episode order, seeds, metrics, or ranking.

Each episode starts from rest, runs at 20 Hz, and ends on success, off-track, invalid action, or the Challenge timeout. The formal cap is 4,000 Controller steps. Controller initialization and each complete compute_control call are timed separately; the per-step soft deadline is 50 ms.

An unexpected plugin, recorder, or callback exception invalidates attempt 002. The transaction preserves a bounded, path-sanitized failure record and does not invent a terminal row, continue with a different execution path, or retry automatically. Initialization above 30 seconds is recorded as a soft diagnostic and does not by itself change ranking or protocol status.

Ranking

There is no combined score. Controllers are ordered by:

1. success rate, descending; then
2. mean lap time across successful episodes, ascending.

If both values are exactly tied, the declared PID -> MPC -> PPO order provides a deterministic final ordering. A Controller with no successful episode has no mean successful lap time. Reward, tracking error, smoothness, and compute timing do not alter the ranking.

M8 has no minimum success-rate gate. The report may pass its protocol and integrity checks even if a Controller performs poorly. This separation prevents an undesirable result from becoming a reason to tune on Test or repeat the official attempt.

Metric definitions

All dynamic metrics are reconstructed from the public observation, requested action, and Runner timing captured during the canonical episode. They do not read MJX state, Race Core internals, or private Track projection state.

One sample is recorded after every Environment transition:

• Speed is the Euclidean norm of the post-step body-frame longitudinal and lateral velocity.
• Lateral error is the signed distance from the post-step rear-axle position to the observed centerline. The first projection searches globally; later projections search four segments backward and twelve forward from the previous segment to respect Track topology.
• Requested action is the raw Controller request before the common actuator layer clips or rate-limits it.
• Steering saturation is true only when requested steering is strictly below -0.6 rad or strictly above 0.6 rad. A request exactly on a bound is not saturated.
• Longitudinal saturation is true only when requested acceleration is strictly below -8.0 m/s² or strictly above 4.0 m/s².
• Action smoothness uses successive requested-action differences divided by 0.05 s. The first action of each episode and cross-episode differences are excluded. The reported values are steering-rate RMS in rad/s and acceleration-rate RMS in m/s³.
• Controller timing stores each complete compute_control duration. P50, P95, and P99 use the raw samples. A deadline miss is a call strictly longer than 0.05 s.

Speed, lateral-error, saturation, and timing aggregates are transition-weighted across all 20 episodes. Smoothness aggregates are weighted across valid within-episode action deltas. The report also includes successful lap times, per-Track outcomes, transition counts, failure-reason counts, maximum lateral error, and deadline-miss count and rate.

Each Controller summary reports a diagnostic real-time qualification: P99 must be at most 0.05 s and the deadline-miss rate must be at most 1%. The boolean is published explicitly, but it is not a protocol pass gate and does not alter the success/lap-time ranking.

Timing is a diagnostic, not a hard real-time guarantee. Python scheduling, host synchronization, hardware, and solver behavior are part of the measured context, so the run manifest must accompany the percentiles.

Same-rollout replay rule

Replay selection is fixed before evaluation: Test row 0 is retained for PID, MPC, and PPO whether the episode succeeds or fails. The evaluator records every canonical episode and keeps the row-0 public trajectory from that same measured rollout.

It does not run a replay Environment, repeat an episode, choose the first success, or replace a trajectory because a later outcome looks better. This rule avoids both outcome cherry-picking and false parity assumptions across repeated MJX-Warp rollouts.

Published artifacts

Each Controller owns one directory:

results/0.1/<controller>/m8-final-v0-1-002/
├── results.csv
├── summary.json
├── run_manifest.json
├── metrics.npz
├── trajectory.png
├── telemetry.png
└── selected_replays/
    └── test_row_000_trajectory.json

results.csv contains the fixed 20 per-Track rows. summary.json contains the aggregate outcome, metric, and timing values. run_manifest.json binds the source, dependencies, hardware/software, configuration, Controller files, seeds, Track identities, and artifact hashes.

metrics.npz is the canonical non-pickled sample artifact. It stores benchmark and Controller metadata, ordered Track IDs and reset seeds, episode offsets, compute durations, post-step speed, lateral error, raw requested actions, and both saturation flags. Episode offsets preserve the boundary needed to exclude cross-episode action deltas.

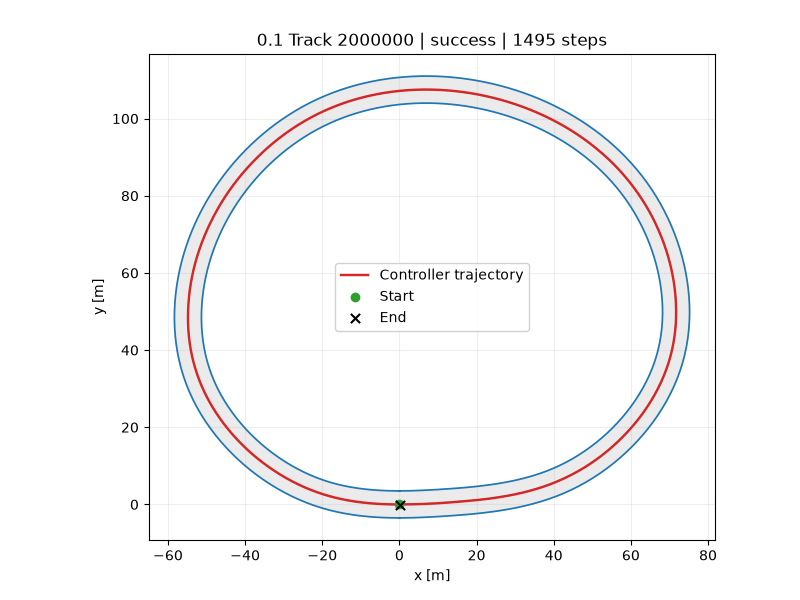

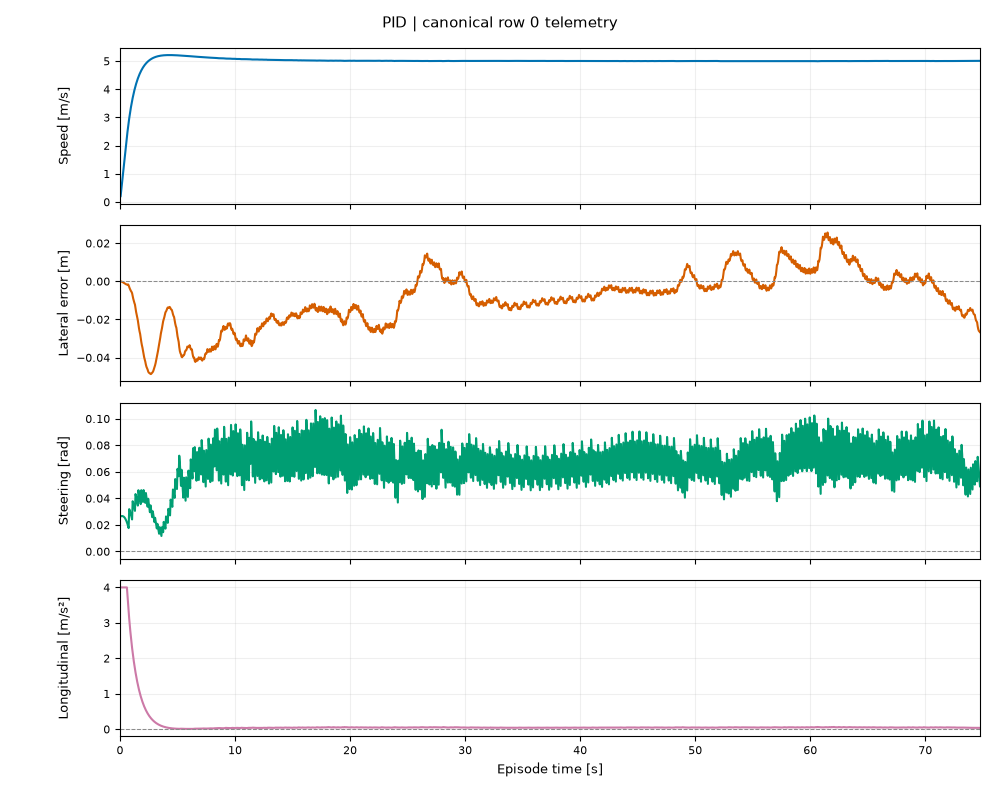

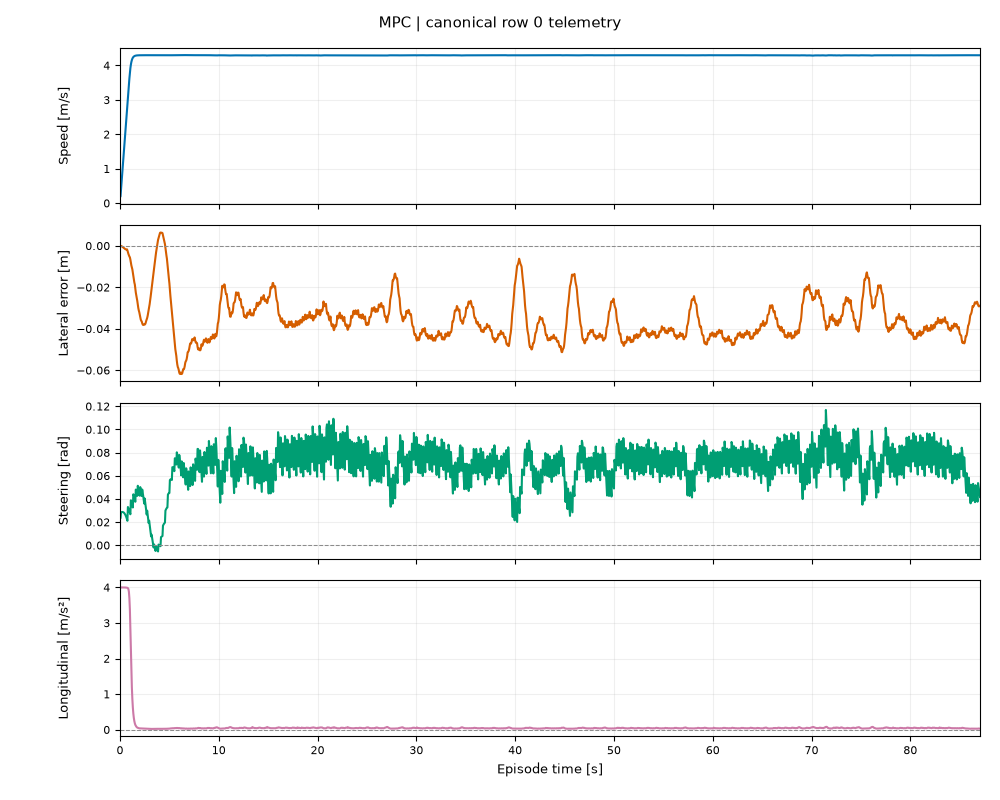

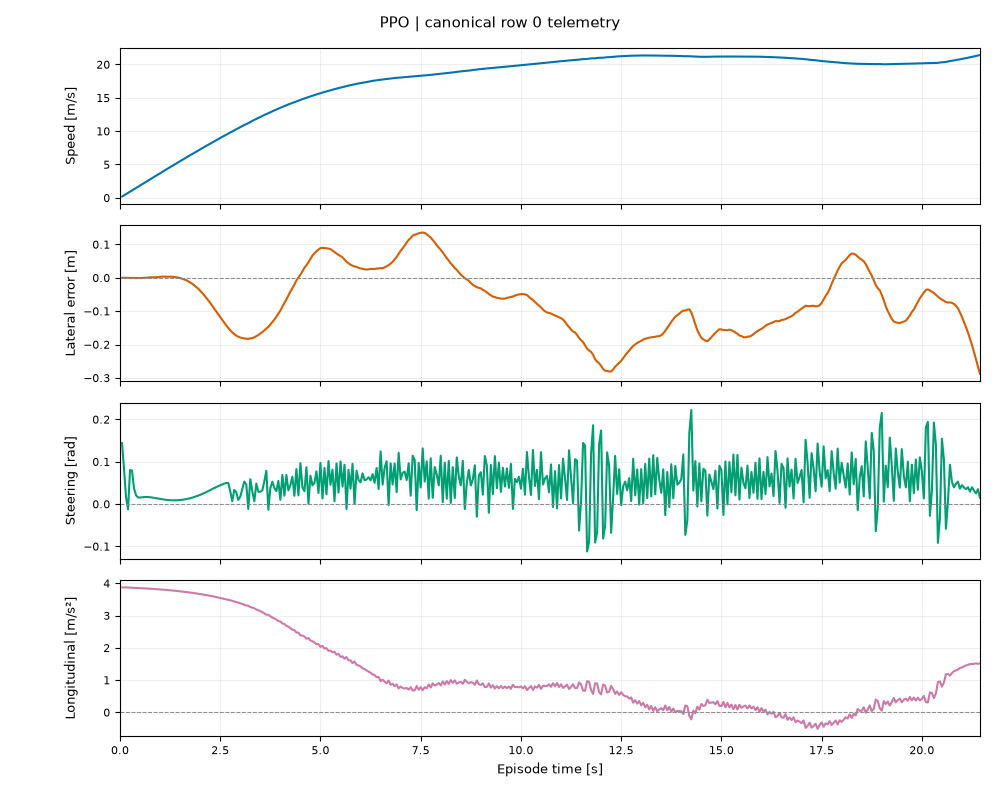

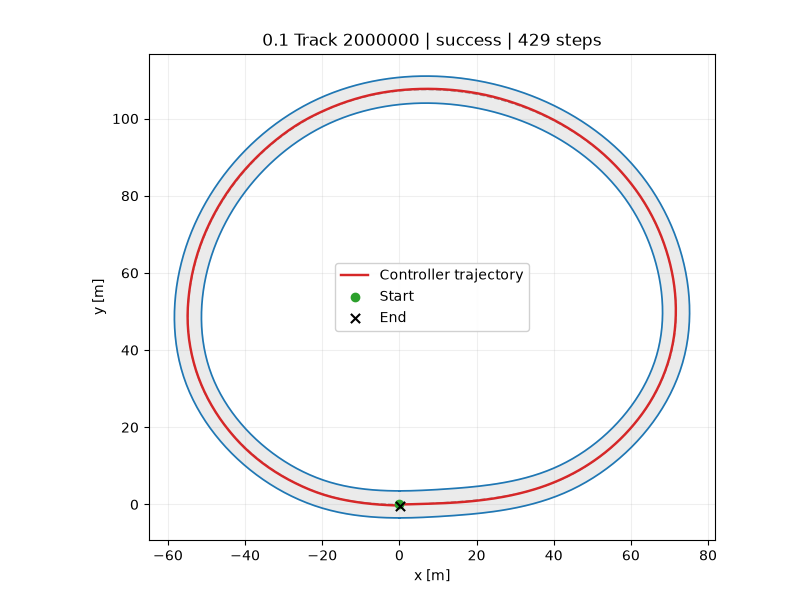

trajectory.png and telemetry.png render the predeclared row-0 trajectory and samples. The JSON beside them preserves the corresponding public trajectory. Three comparison artifacts live under benchmarks/v0.1/: the strict M8 report, the Controller comparison CSV, and a row-0 path comparison PNG. The formal publication allowlist contains exactly these 24 files.

Attempt lineage and crash policy

Attempt 001 (m8-final-v0-1-001) crossed TEST_BOUND and loaded the verified Test pool. Its first Environment creation triggered Warp's lazy platform probe, which attempted an unauthorized helper process after the process guard was sealed. The guard rejected it. The retained transaction has an empty episode journal, one canonical failure blob with workload=null, no reset or step, no Controller construction, no execution-evidence seal, no staged artifacts, and no published outputs. Consequently, it exposed no Controller outcome, success, lap time, or other performance signal. The canonical attempt 001 failure report binds those facts, the retained transaction tree, the unchanged Controller identities, and the replacement authorization. The final global JSON repeats this evidence in a strictly recomputed replacement_lineage block, so its current-transaction attempt count cannot be read as the total formal-attempt count.

The repository owner authorized exactly one zero-episode infrastructure replacement: m8-final-v0-1-002. Its accepted result is the first complete attempt 002 result that passes the otherwise unchanged frozen protocol and artifact-integrity checks. The only implementation changes permitted by that authorization are pre-bind Warp initialization, replacement lineage evidence, replacement eligibility gates, and replacement documentation. Controller performance is never a retry condition, and a third attempt is forbidden.

Before Test access is durably bound, a failed preparation may restore prior outputs and restart. After attempt 002's one-way TEST_BOUND transition:

• automatic retry is forbidden;
• an incomplete episode journal is preserved for explicit investigation rather than silently rerunning the Controllers;
• deterministic artifact construction may resume without another rollout only when all 60 episode records and the typed post-close execution-evidence seal are both durable; a journal without that seal remains incomplete and non-retryable; and
• outputs become public only after the exact allowlist is staged and validated.

The transaction advances monotonically through PREPARED, TEST_BOUND, EVALUATION_COMPLETE, ARTIFACTS_VALIDATED, and COMMITTED. Partial publication is restored from durable backups. A successful process retains the ignored attempt 002 COMMITTED transaction as recovery evidence and atomically moves the runtime Controller snapshot to an ignored quarantine; it does not recursively delete that snapshot during the formal process. A crash is not permission to tune, change a Controller, select a different checkpoint, or discard an unfavorable completed result.

Published result

The accepted run is m8-final-v0-1-002, bound to clean source 609548199bf1872185d5f9dc5741f3b7795ce77e.

Rank	Controller	Success	Mean successful lap	Lateral RMS	Compute P99	Deadline misses
1	PID	20/20	88.085 s	0.0211 m	0.340 ms	0/35,234
2	MPC	20/20	102.563 s	0.0381 m	43.902 ms	40/41,025
3	PPO	19/20	23.913 s	0.2205 m	0.281 ms	0/9,615

Controller	Detailed artifacts
PID	summary · per-Track CSV · trajectory · telemetry
MPC	summary · per-Track CSV · trajectory · telemetry
PPO	summary · per-Track CSV · trajectory · telemetry

PPO's only failure was an off-track termination on Test row 14, Track ID 2000016. It was faster than PID and MPC on successful laps, but ranking considers success rate first. All three Controllers passed the diagnostic real-time criterion. The run executed 85,874 Environment steps in 2,873.186 seconds with zero numerical failures, 360 MiB peak sampled process VRAM, and zero final JAX live bytes.

The canonical machine-readable evidence is the global report and comparison CSV. The result interpretation deterministically derives descriptive plots and paired comparisons from the frozen CSV/NPZ artifacts without another Test execution. The predeclared same-rollout Test row-0 comparison is shown below.

The release-maintainer command remains available for reproduction:

pixi run -e gpu benchmark-m8-controllers

The published attempt 002 remains the accepted benchmark 0.1 result. A later invocation is a reproduction attempt and cannot replace it. See Reproducibility for the identity and artifact workflow.
